Description

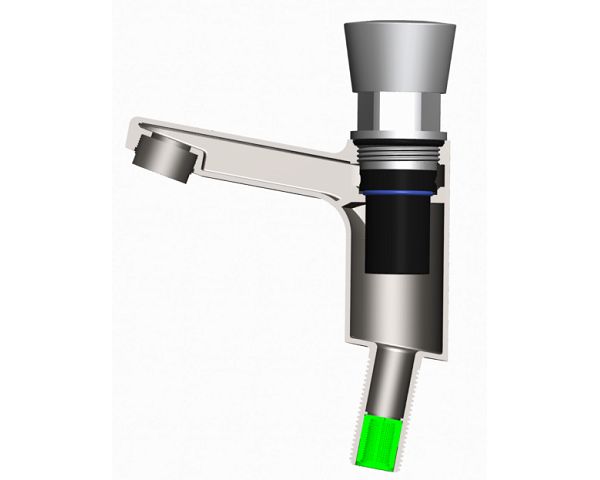

Brass cartridge faucet adopted with delay time integrated cartridge M26,M27,M28 is made by brass which is non-toxic and free from incrustation. It adopts the physical attributes of magnet as driving force which realized zero leakage and more obvious have better water-saving capability.
Our Advantages
Brass cartridge faucet takes our original magnetic cartridge,abandon the traditional valve screw structure, completely isolate the valve driving part and control part,control the valve by indirect driving.It has the following unique advantages compared to traditional similar valves:
1.Tap to open, perfect user experience.
The user experience is good because valve can be easily controled with a force less than 1/3 of the traditional similar valve of no more than 16N due to the unique characteristics of magnetic technology.
2.Stable performance.
All design functions of brass cartridge faucet can be stably maintained during the normal life cycle in case of no artificial damage.
3.Can adapt to extreme pipeline pressure environment.
The brass cartridge faucet produced by our company can work normally under the water pipe pressure of 0.02MPa to 0.75MPa with basically the same control force.
4.Integrated design, convenient for repair and maintenance.
The magnetic cartridge Brass Cartridge Faucet used is designed and manufactured in an integrated manner, the cartridge is self-contained.It's only take out and install the cartridge as a whole if the valve needs maintenance or repair,simple and convenient.

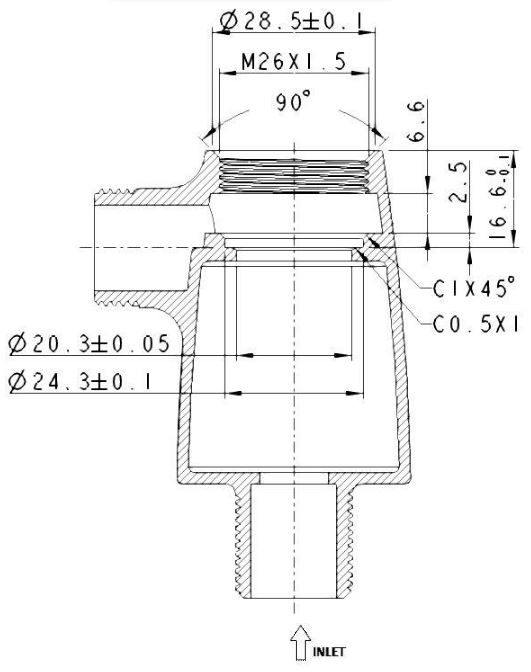

Specification | DN15 | ||||
Maximum operating temperature | 90℃ | Spool Opening pressure | ≤16N | ||
Switch trip | 8.5mm | Clamp nut torque | 6N*m | ||
Strength test | Static pressure 2.5MPa | ||||
Delay time | 4.5s±1.5s | 6.5s±2s | 10s±3s | ||
Average flow | 0.1L/s (0.1 Mpa) | Limiting | 6L/min | ||
Seal test | High pressure | 0.75MPa | |||
Low pressure | 0.05MPa | ||||
Service life | 500,000 times | ||||
In & out term | Bottom in and side out | ||||
Main material | Hpb59-1、PPS、EPDM、NBR | ||||
Company Information
Huangshi Xingfa Technology Co.,Ltd. was established in 2013 with independent import and export rights and features the innovative cartridge and related valve&faucet creations.Our refined sanitary product designs are not only developed for individual consumers who are interested in adding quality and character to their homes, but also continue to be featured as the stylistic signature for a growing number of small and large scale architectural and interior design projects around the world.In addition to beautiful standard bathroom products, we also specialize in the development of extraordinary OEM and ODM Projects. Browse through our products sections on our website to see the variety of products available to find more about of the mesmerizing creations credited to us.
Assembly Line
Test Equipments
Our Showroom
Certification&Patents
We got nearly 30 national patents including invention patent,design patent and utility model patents.
Patents
Our Exhibition
Customers Visiting
How to visit Xingfa?
FAQ
Q:Why us?
A:We are the leading manufacturer who applied magnetism into valve in domestic China.Our new magnetic water-saving valve is leak-free,non-friction,long-life cycle and easy to install.
Q: Are you manufacturer ?
A:Yes,we have our own R&D team,specialized in high-end magnetic valve cartridge.Our cooperated factories produce all other faucet accessories and then we combine them in our company.
Q: What is your MOQ ?
A: 1000PCS
Q:How about the payment term?
A: We accept T/T 30% in advance,70% balance before delivery
