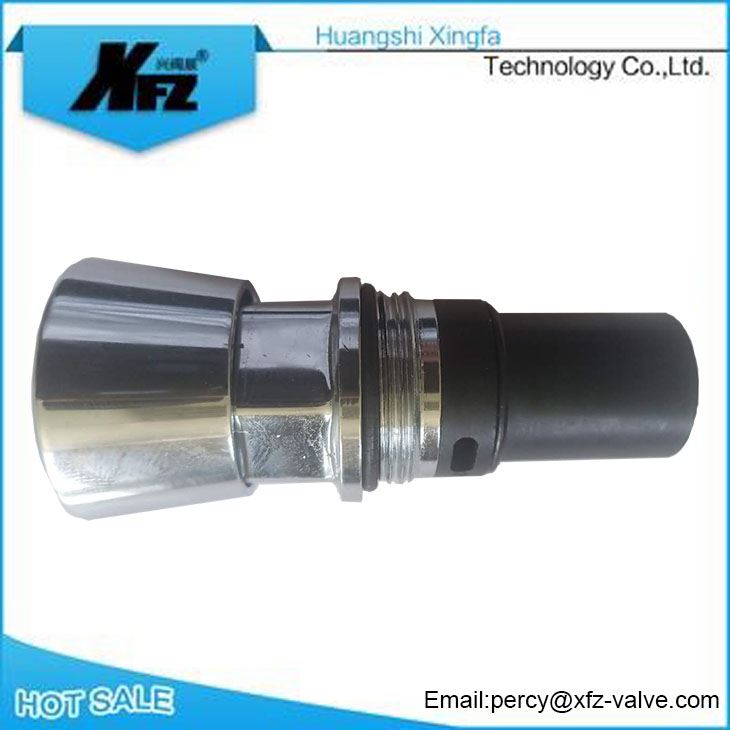

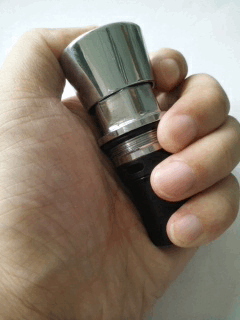

One-piece Self-closing Integrated Basin Valve Cartridge

Description

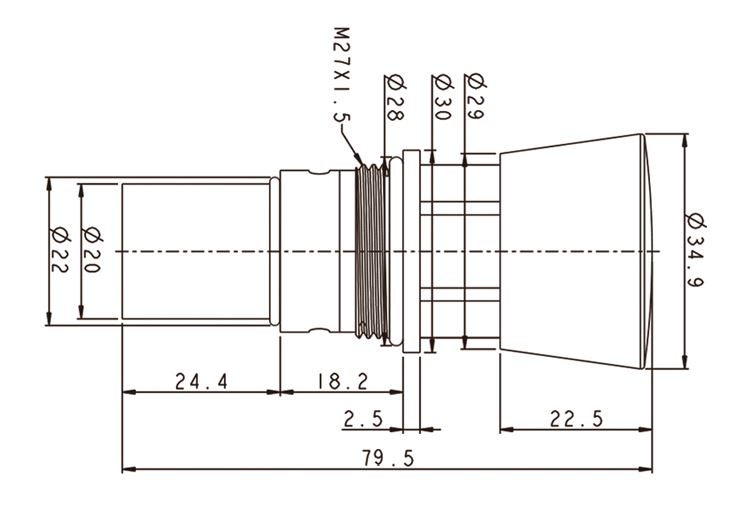

Specification:DN15
Maximum operating temperature:90℃
Cartridge opening pressure:≤16N
Switch trip:8.5mm

Description


Product Advantages

Highly integrated, the manufacturer's match is easy and worry-free. (Integrated cartridge) Integrating the magnetic cartridge, the fastening nut and the pressing handwheel into a whole, which saves the bathroom valve manufacturer trouble of having to additionally install the fastening nut, pressing handwheel and related seals when producing.

Average flow	0.1 L/S(0.1 Mpa)	Limiting(L/Min)		6
Service life	500,000 times	In and out term		Bottom in and side out
Main material	Hpb59-1,NBR,EPDM,PPS	Strength test static pressure(MPa)		2.5
Delay time(s)		3~6	4.5~8.5	7~13
Seal test pressure range(MPa)		0.05~0.75
