Description

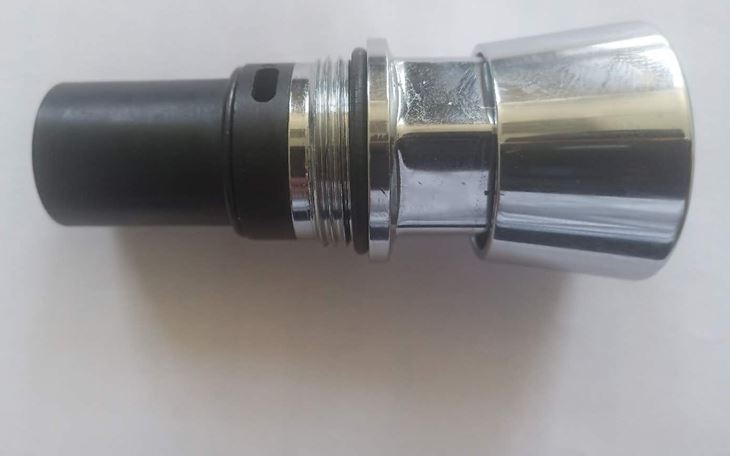

Model:8-00-005-01
Specification:DN15
Cartridge opening pressure:≤16N
Switch trip:8.5mm
Service life | 500,000 times | |||
Main material | PPS,Hpb59-1,EPDM,NBR | |||
Hydrostatic strength test(MPa) | 2.5 | |||
Maximum operating temperature(℃) | 90 | |||
In and out term | Bottom in and side out | |||
Seal test pressure range | 0.05~0.75 | |||
Limiting(L/Min) | 6 | |||
Average flow(0.1 Mpa) | 0.1 L/S | |||
Delay time(s) | 4.5±1.5 | 6.5±2 | 10±3 |
Company Information
Huangshi Xingfa Technology Co.,Ltd. was established in 2013 with independent import and export rights and features the innovative cartridge and related valve&faucet creations.Our refined sanitary product designs are not only developed for individual consumers who are interested in adding quality and character to their homes, but also continue to be featured as the stylistic signature for a growing number of small and large scale architectural and interior design projects around the world.In addition to beautiful standard bathroom products, we also specialize in the development of extraordinary OEM and ODM Projects. Browse through our products sections on our website to see the variety of products available to find more about of the mesmerizing creations credited to us.
Assembly Line
Test Equipments
Our Showroom
Certification&Patents
We got nearly 30 national patents including invention patent,design patent and utility model patents.
Patents
Our Exhibition
Customers Visiting
Packing&Shipping
Hot Tags: M26 Self-closing Integrated Valve Magnetic Cartridge, China, manufacturers, suppliers, wholesale, pipe faucet, lavatory faucet, Brass Gooseneck Faucet, concinnity faucet, one hole faucet, water saving faucets
